Thermostats

The Heatmiser UH8 underfloor heating wiring centre is designed to work with our 4 channel 230v time clock (TM4 v2) and 230v Set back thermostat (DS-SB v3) but equally could be used with any 230v room thermostat.

Up to 8 zones can be controlled from the UH8. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

A simple slide switch makes zone 8 suitable for controlling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler. Up to 4 actuators can be connected to each zone.

Heatmiser UH8 – 8 Zone 230v Underfloor Heating Wiring Center

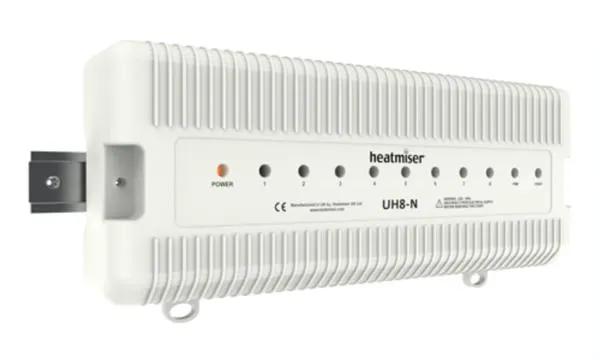

The Heatmiser UH8-N is our 8 zone underfloor heating wiring centre designed to be used with our 12v thermostats.

Heatmiser UH8-N – 8 Zone 12v Wiring Center

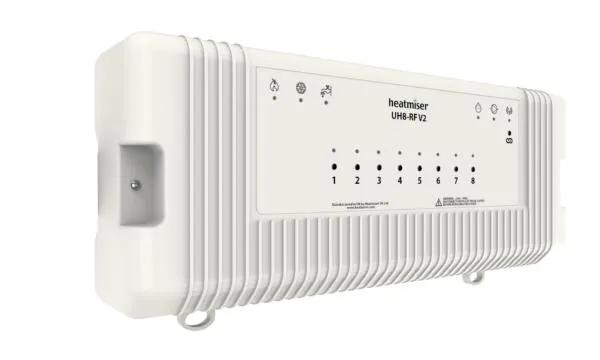

The Heatmiser UH8-RF v2 is our 8 Zone wireless wiring centre designed to work with our Slimline-RF v3 and neoAir v3 Thermostats.

The UH8-RF v2 provides central switching and is therefore ideally situated next to the underfloor heating manifold. 8 zones can be controlled as well as providing an output for a hot water cylinder. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers. The boiler signal can also be sent via RF to the RF Switch v2, providing the installer a totally wireless solution.

Up to 6 actuators can be connected to each zone. An external aerial is available for use when the UH8-RF v2 is being mounted in a metal cupboard or when the wireless signal is restricted.

A software option in the thermostat allows you to configure which zones are underfloor heating and which zones are radiators. Radiator zones will not enable the underfloor heating pump, valve and boiler when there is a call for heat. Radiator zones should enable the boiler from the end switch of the valve.

Heatmiser UH8-RF v2 – 8 Zone Wireless Wiring Centre

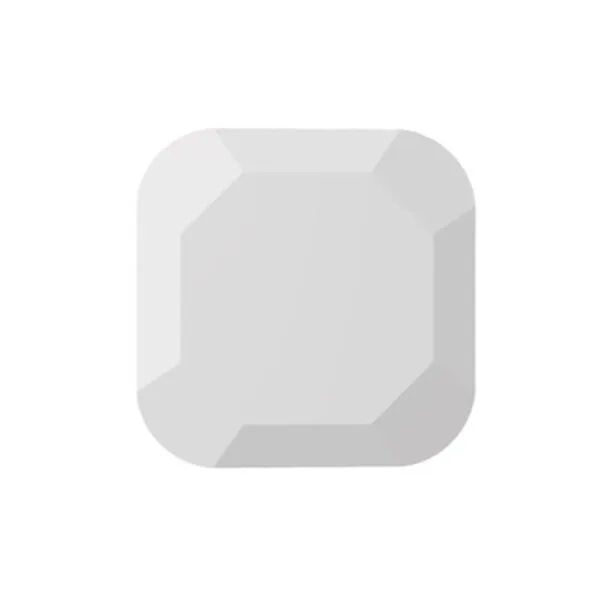

With this new addition, your Neo system is now even smarter. The wireless air sensor allows you to measure the temperature from a single wireless air sensor or multiple sensors if you are looking to average the temperature over a larger area.

Wireless Air Sensor pairs to the neoHub G2 using the Android or iOS apps. Once linked, you can decide how the system will operate;

 	Monitoring – This allows you to simply measure the temperature in another area of your home.
 	Pair to Zone – This allows you to pair the sensor to a neoStat you already have setup in your system.

If you select Pair to Zone, you now have 2 options.

 	Averaging – If you select this option, the thermostat will average the temperature with the internal sensor in the thermostat.
 	Remote Only – If you select this option, the internal sensor will be turned off and the remote sensor will become the air sensor for the zone selected. If you then pair additional remote sensors, they system will then give an averaged reading.

Heatmiser Wireless Air Sensor

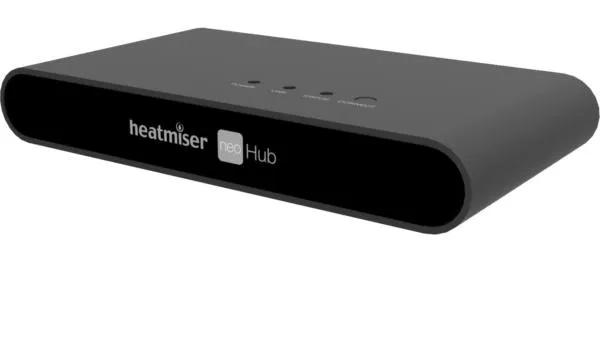

Heatmiser neoHub G2 is the gateway to the Neo System, providing remote control of all neoStat's and neoPlug's from your iOS or Android device. The Heatmiser neoHub G2 connects to your home broadband router and wireless to the neoStats in your home. No special computer knowledge is required, simply plug into your router, create a FREE account via the Neo app and then take control of your heating, hot water and appliances from anywhere.

HomeKit-Enabled Heatmiser neoHub Gen 2

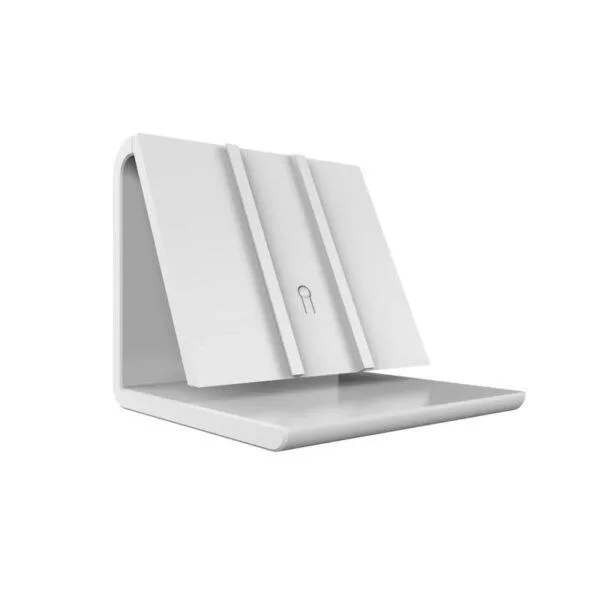

Heatmiser neoAir Stand

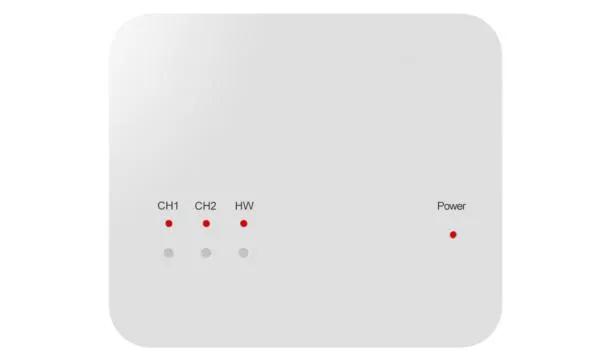

The RF-Switch v2 is surface mount wireless receiver. It is capable of controlling 2 heating zones and 1 hot water zone.

Two Heating Zones Hot Water Wireless Receiver – Heatmiser RF Switch v2

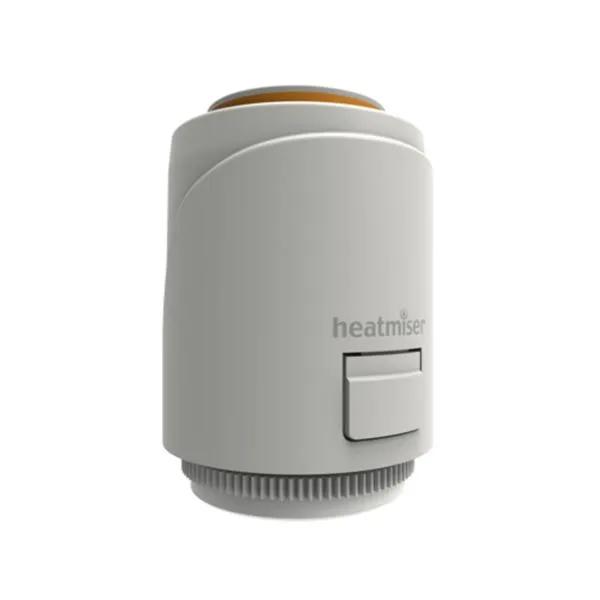

The Heatmiser TA230 is our 2 wire thermal actuator.
